Lusail Stadium Roof Catwalk and Roof Arches

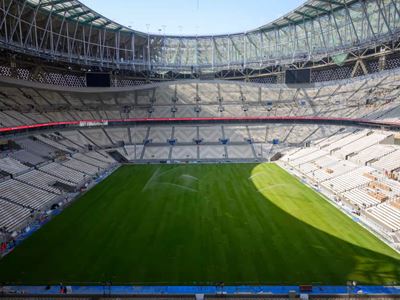

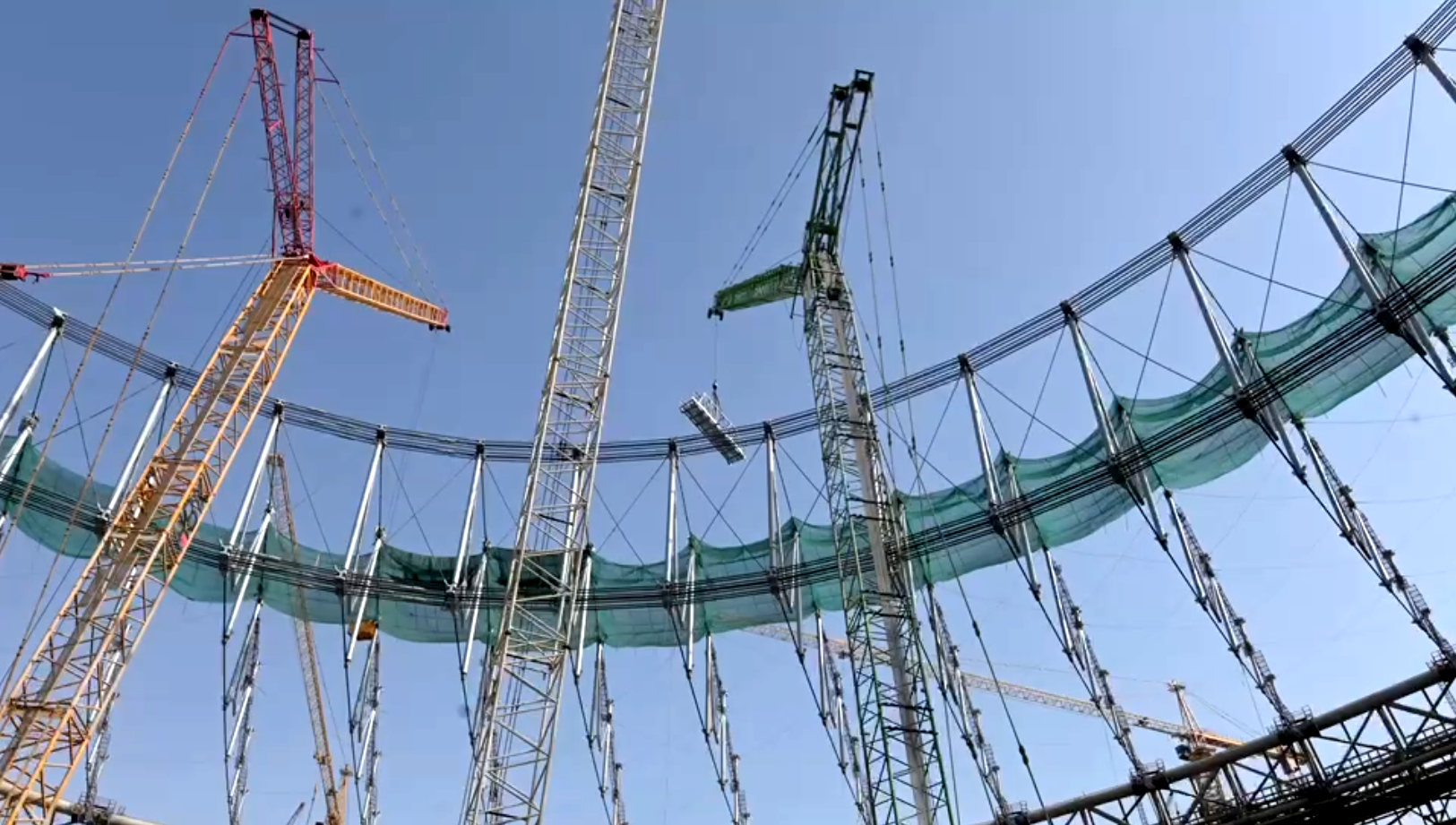

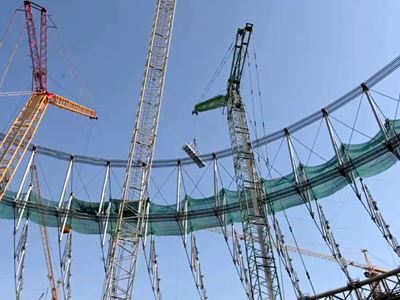

Lusail Stadium Roof Cat walk Project
• One-of-a-kind spoke wheel cable net structure that houses the roof catwalks provides unique take on stability by transferring vertical loads from the roof cladding system and transfers it to the roof structure.
• The 3 - Concentric ring style walkable structure provides support to the some of the best coverage of lighting & sound support system for the entire pitch as well as the spectators.
Project Scale: 800T
Project Date: 02.2020-04.2021
Project Address: Lusail, Doha, Qatar
Technical Specification: BS Standard / ASTM Standard /AISC Standard / ASCE Standard / QCS2014 Standard

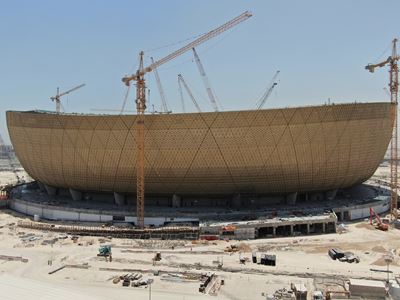

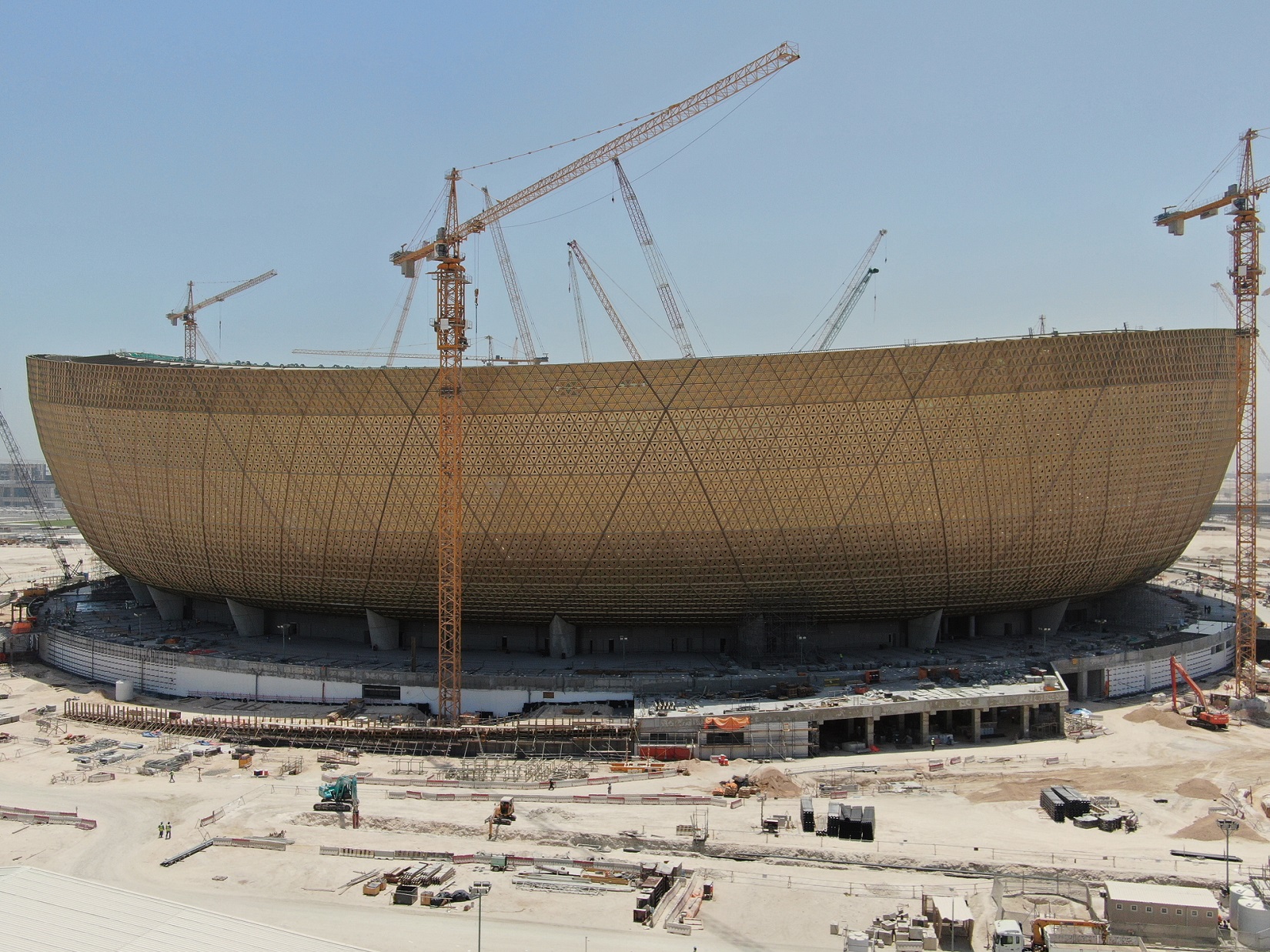

Lusail Stadium Roof Arches and Flying Mast Project

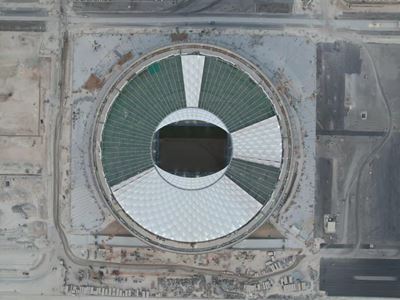

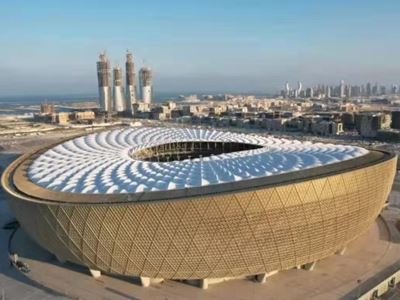

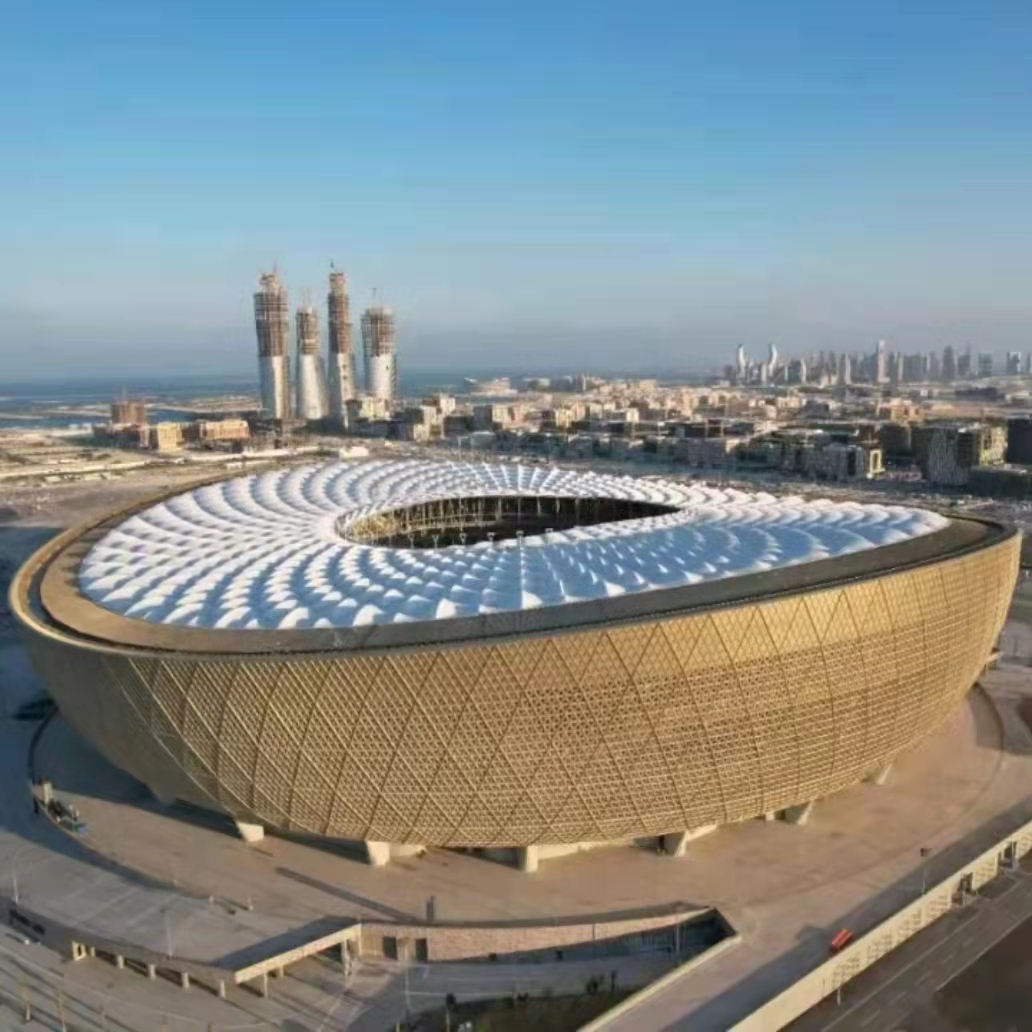

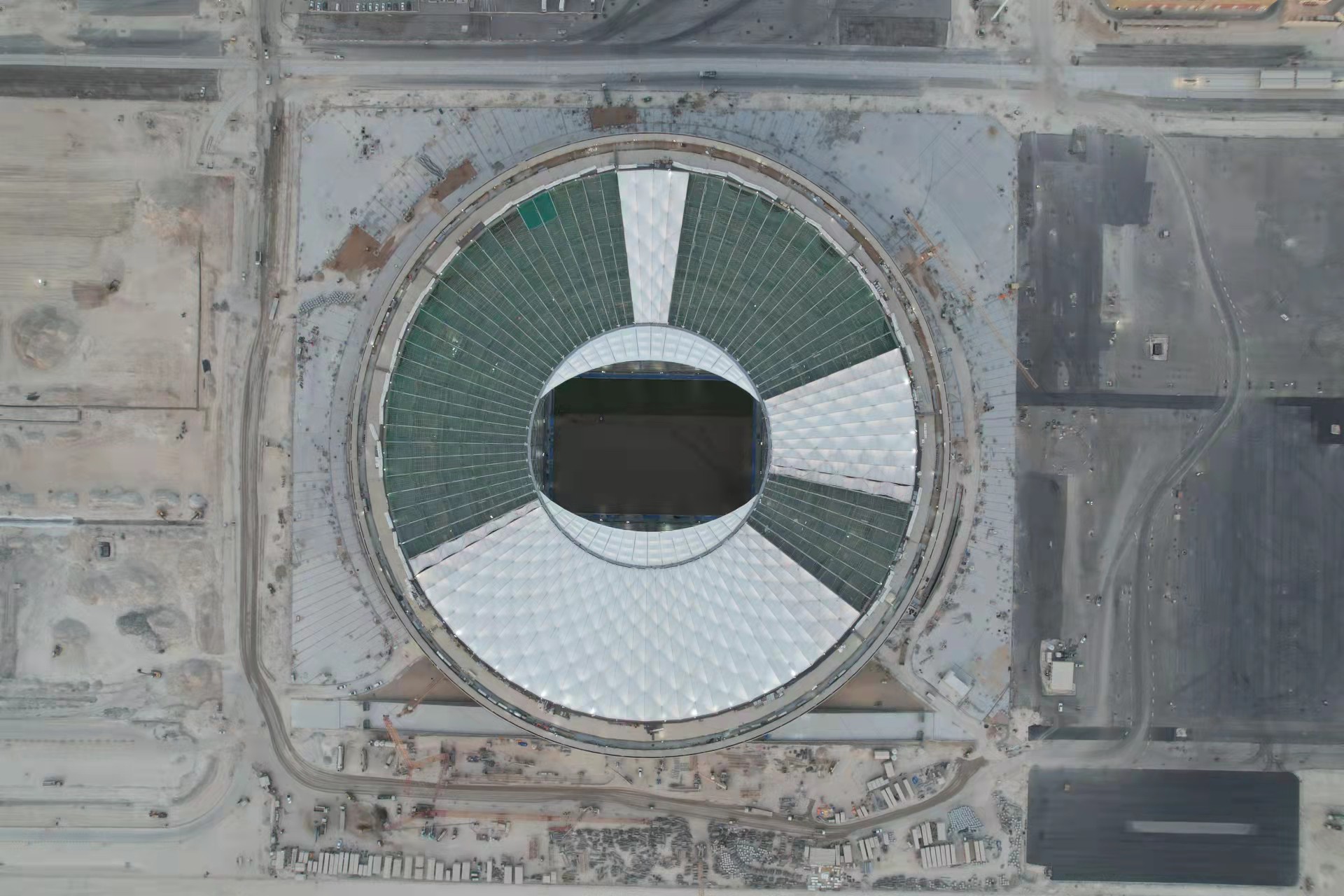

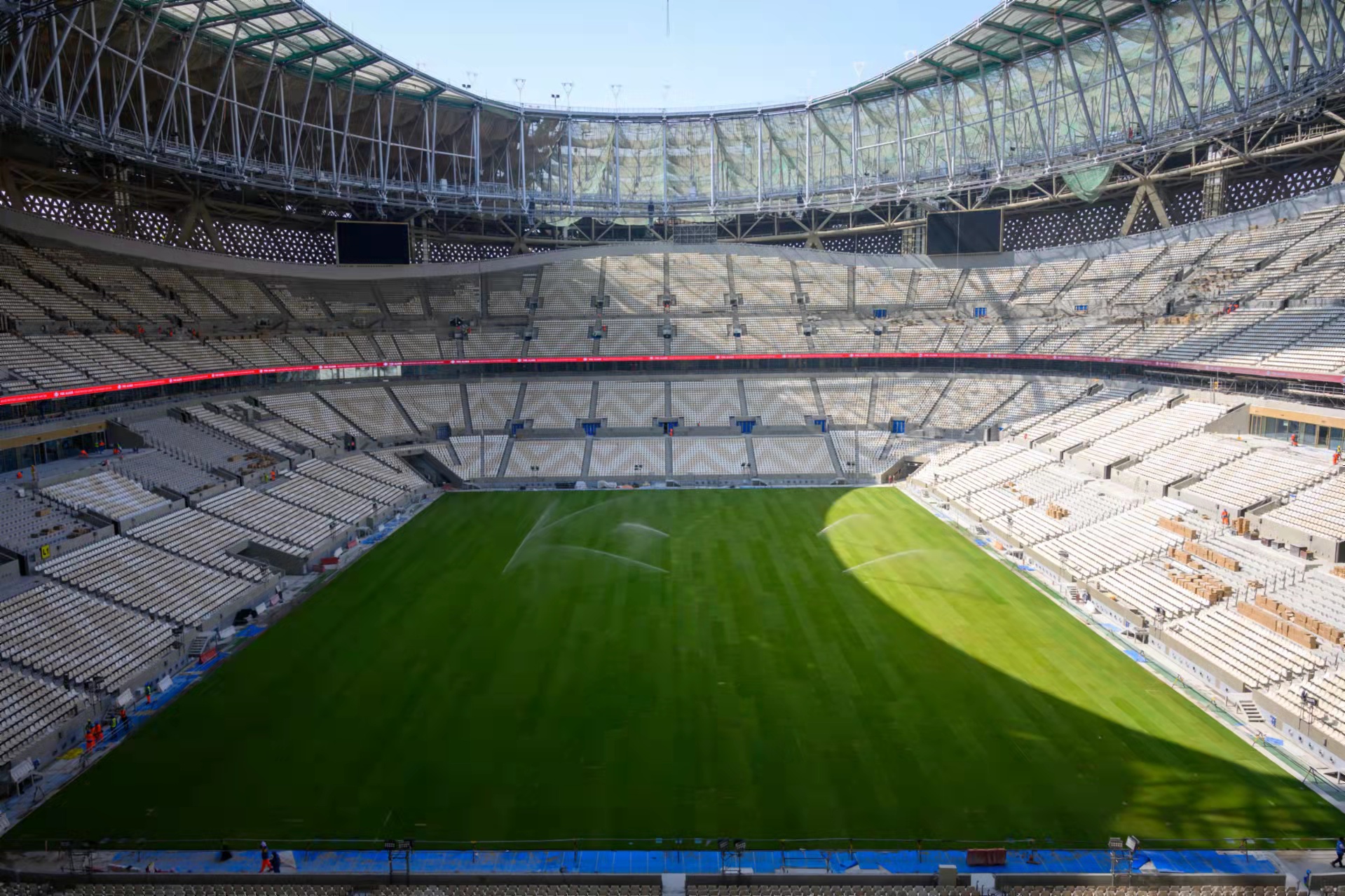

• The roof of the stadium is designed in the shape of a saddle which will float above a concrete seating bowl.
• A ring of arching columns will discreetly support the roof structure, which can be retracted at the center.
• The operable louvres of the roof will allow the pitch to be exposed or completely covered.
Project Scale: 1000T
Project Date: 02.2020-08.2021
Project Address: Lusail, Doha, Qatar
Technical Specification: BS Standard / ASTM Standard / AISC Standard / ASCE Standard / QCS2014 Standard
